Technical specifications of DXi 11 engine, Euro 3
Customer Support
Technical specifications of DXi 11 engine, Euro 3
| 330 hp | 380 hp | 440 hp | |
|---|---|---|---|
| Maximum power at 1900 rpm | 243 kW | 280 kW | 324 kW |
| Maximum torque at 1150 rpm | 1 650 N.m | 1 800 N.m | 2000 N.m |
| Number of cylinders | 6 | ||
| Bore | 123 mm | ||
| Stroke | 152 mm | ||
| Capacity | 10.84 L | ||
| Cylinder n°1 | Side opposite engine flywheel | ||
| Idling speed | 600 (–10/+50) rpm | ||
| Max. speed without load | 2 200 rpm | ||
| Max. speed with load | 2 200 rpm | ||
| Type of injection | Pump injector with electronic control | ||
| Type of timing | Rear timing (engine flywheel side) | ||
| Weight of engine with accessories | 1115 kg |
Power curves, Euro 3 version
The DXi 11 engine is available with 3 power ratings: 330, 380 and 440 hp.

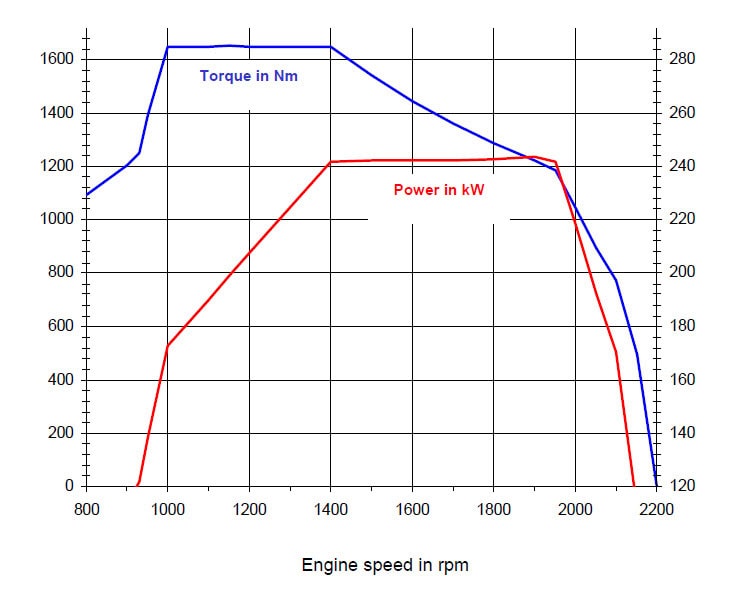

330 hp engine:
| 330 hp/243 KW engine | |
|---|---|
| Maximum torque 1650 Nm at 1100 to 1400 rpm | Maximum power 321 kW at 1900 rpm |
380 hp engine:
| 380 hp/279 KW engine | |
|---|---|
| Maximum torque 1800 N.m at 1000 to 1400 rpm | Maximum power 279 kW at 1800 to 1900 rpm |

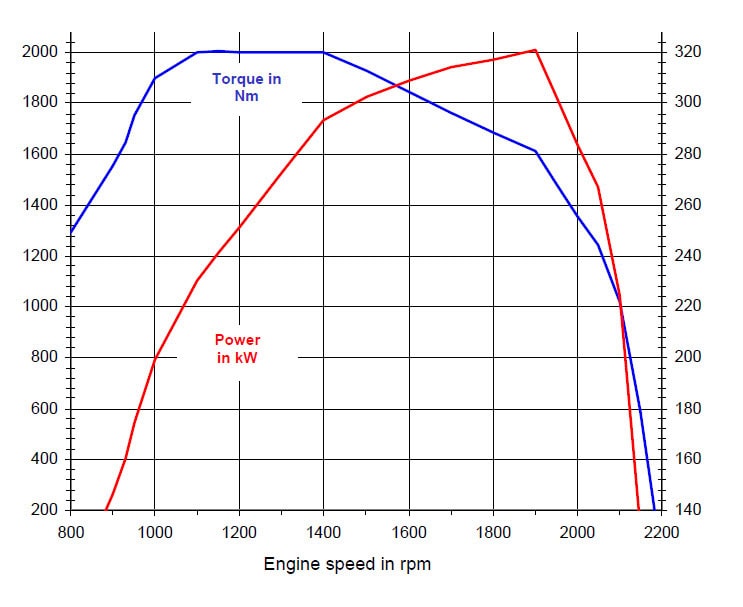

440 hp engine:
| 440 hp/321 KW engine | |
|---|---|
| Maximum torque strong>2000 Nm at 1100 to 1400 rpm | Maximum power 321 kW at 1900 rpm |
